Functional features:

The EK-80 is a high-power, robust two-way system with a powerful 8-inch (210mm) low-frequency driver and a 1.45-inch (34mm) high-frequency compression driver mounted on a continuous directional 80 degree x 80 degree horn. The high-frequency horn can rotate, allowing the multi angle box to be placed both horizontally and vertically. Making the system more concise, it is the ideal choice for situations that require efficient and reliable full range speakers. It is also suitable for fixed installation and quick moving installation.

Application scenarios: conference rooms, churches, multipurpose halls, auditoriums, etc.

Technical parameters:

Unit configuration: LF: 1 × 8 "(210MM); HF: 1 × 1.45" (34MM)

Frequency response: 72Hz-20KHz

System: 2way speaker

Impedance: 8ohm

Sensitivity 1w/1m: 93dB

Rated/Peak Power (RMS): 300W/1200W

Output sound pressure level (continuous/peak): 118dB/124dB

Coverage angle: 80 ° x80 ° (H x V)

Protection circuit: High intelligence electronic protection system

Input interface: 1 × Speakon NL4MP

Color: Black

Box material: Birch veneer multi-layer plywood

Surface treatment: water-based polyurethane dot paint

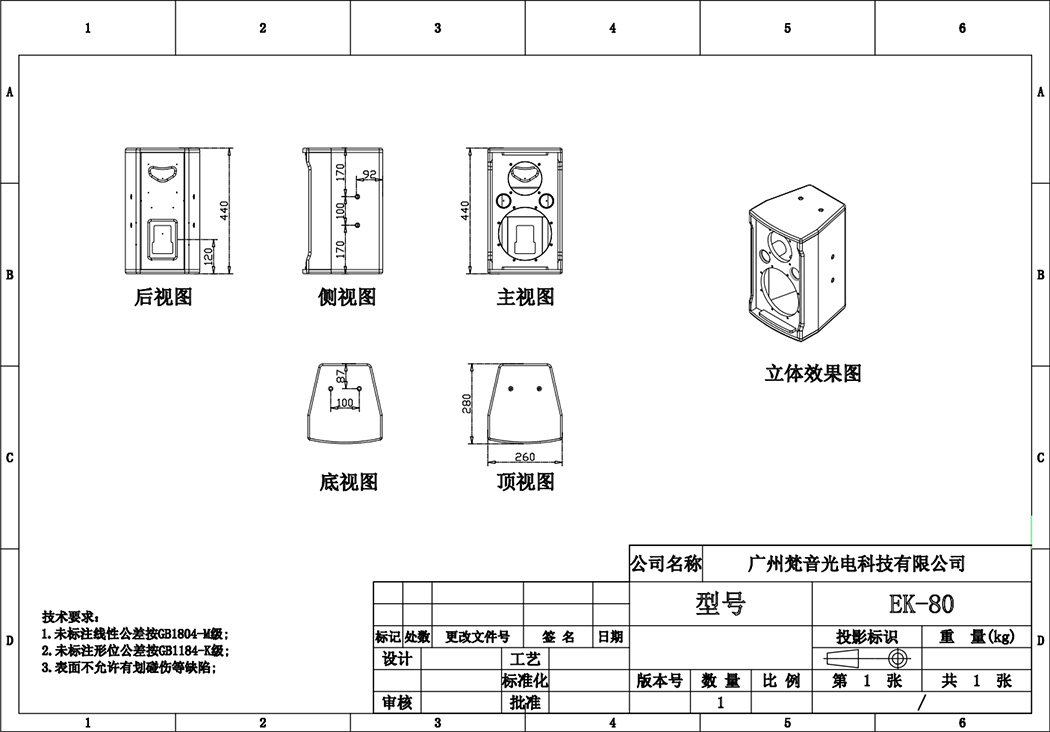

Product dimensions: Width 260 x Height 440 x Depth 280MM

Net weight of product: 10.30KG
