Functional features:

EK-215 is a high-power, robust two-way system with two powerful 15 inch (385mm) low-frequency drivers and a 3-inch (75mm) high-frequency compression driver installed on a continuous directional 75 degree x 50 degree horn. The high-frequency horn can rotate, allowing the multi angle box to be placed both horizontally and vertically. Making the system more concise, it is the ideal choice for situations that require efficient and reliable full range speakers. It is also suitable for fixed installation and quick moving installation.

Application scenarios: studios, multipurpose halls, sports venues, distributed systems, music halls, etc.

Technical parameters:

Unit configuration: LF: 2 × 15 "(385MM); HF: 1 × 3" (75MM)

Frequency response: 45Hz-20KHz

System: 2way speaker

Impedance: 4 ohms

Sensitivity 1w/1m: 98dB

Rated/Peak Power (RMS): 900W/3600W

Output sound pressure level (continuous/peak): 123dB/129dB

Coverage angle: 75 ° x50 ° (H x V)

Protection circuit: High intelligence electronic protection system

Input interface: 1 × Speakon NL4MP

Color: Black

Box material: Birch veneer multi-layer plywood

Surface treatment: water-based polyurethane dot paint

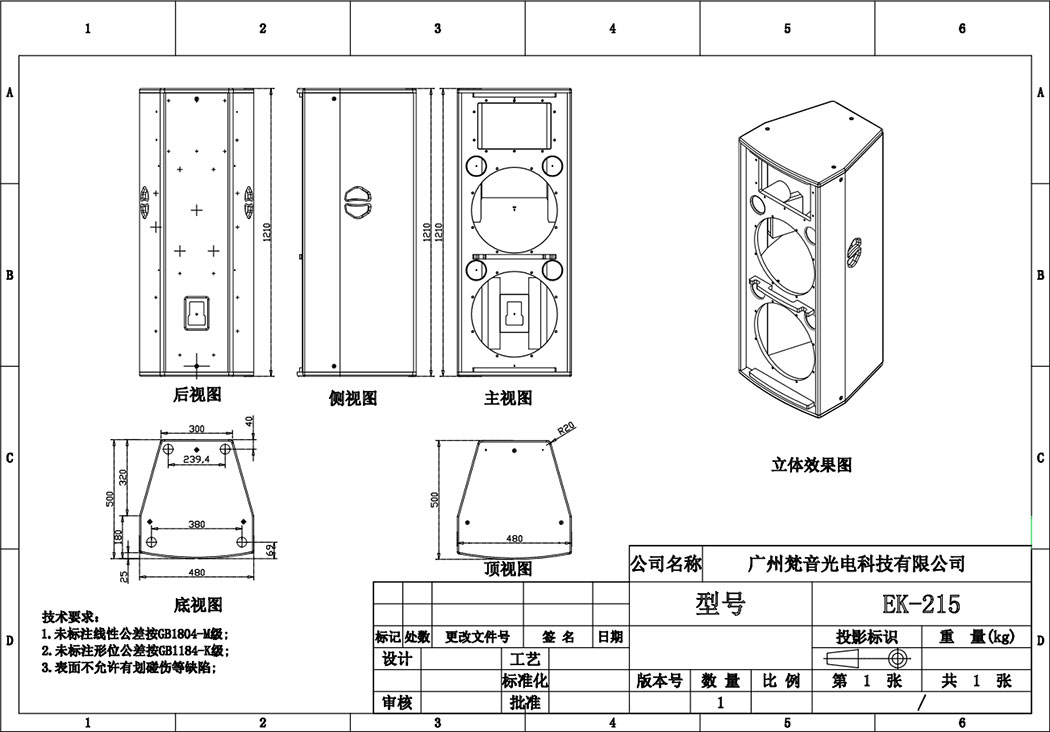

Product dimensions: Width 480 x Height 1210 x Depth 500MM

Net weight of product: 55KG
