Other models：    20 sq. m     25 sq. m     28-38 sq. m

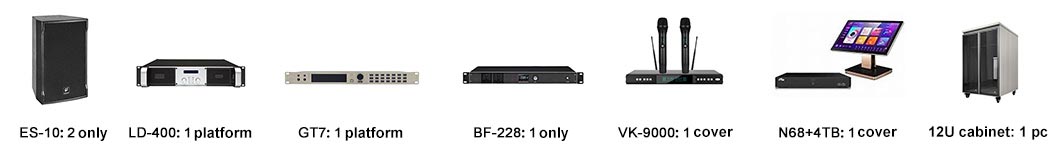

A set of 20 square meters for application

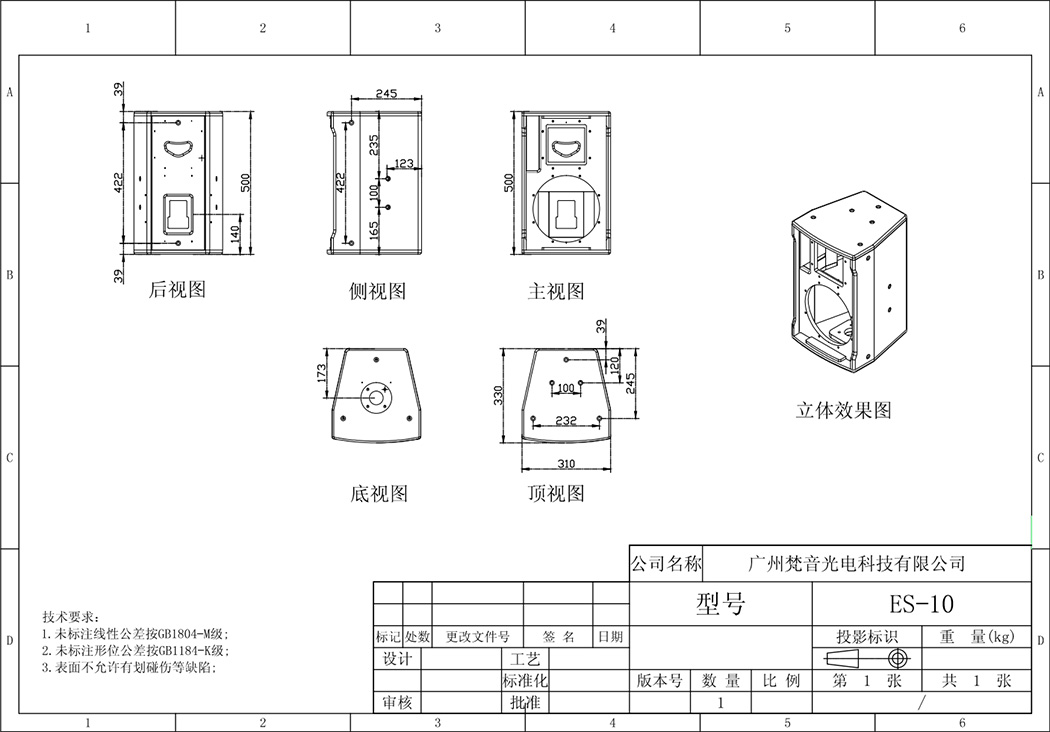

ES-10 Product Drawing

ES-10 Product Description

The ES series adopts world-class speaker units and lightweight imported birch wood panels. Through computer design, it has precise frequency division and broadening frequency response characteristics, as well as good control coverage performance. The rotatable compression horn allows for both vertical and balanced installation, with smooth frequency response and precise division to ensure excellent sound quality for listeners. Simply using language sounds is more ideal. High end bars and slow bars require a balance between smooth and wide vocal ranges. Overly exaggerated and turbid sound quality characteristics are not durable. Especially for slow bars and bars, the sound system must provide smooth and strong bass to replay these music. The ES series uses computer design to set the mid to high frequencies in areas that require impact and high-power treble, expanding the best vocal performance.

ES-10 parameters

Application location：Multi functional hall, banquet hall, conference room, music hall, theater, KTV, nightclub.

Model：ES-10

woofer：1×10(in)（250MM）

High frequency unit：1×1.75(in)（44.4MM）

System：2way speaker

Enduring power：300W

peak power：1200W

Sensitivity：97dB1w/1m

Maximum sound pressure：129dB

Impedance：8ohm

frequency response：50Hz-20KHz

Protection circuit：High intelligence electronic protection system

color：black

Surface Treatment：Water based polyurethane dot paint

Product size：Width 300 x Height 525 x Depth 340MM

Net weight：15.60KG

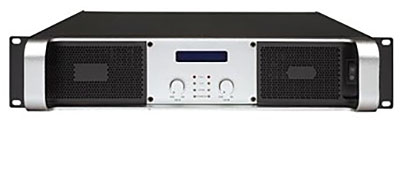

LD-400 Product Description

The LD series amplifier adopts a stable and reliable circuit design; Select a field-effect transistor input operational amplifier as the preamplifier, a common base circuit as the inverter, and a common collector circuit as the output; Stable performance, convenient input and output interfaces, and complete functionality. A complete protection circuit includes: overcurrent protection, output DC voltage protection and self-locking (which can avoid the harm caused to the speaker by the relay repeatedly opening and closing in the protective state), temperature protection, startup delay and pulling out of the switch, and accurate operation;

TECHNICAL INDEX

Model: LD-400

8 Ω power：2*400W

4 Ω power：2*600W

8 Ω bridge power：2*1000W

Total harmonic distortion：Normal operating frequency 1KHz<0.025%

Intermodulation distortion：Under normal working conditions, 60Hz/7kHz -4/1<0.075%

Frequency response：Under normal working conditions, 20Hz-20kHz<+/-0.25dB

Power bandwidth：Under normal working conditions, -3dB 10Hz-50kHz

Phase response：Under normal working conditions, 20Hz-20kHz<+/-8 degrees

Signal to Noise Ratio：1KHz, 0.775V input, A-weighted,>110dB

Damping coefficient：Under normal working conditions, 63Hz>1500

Conversion rate：1us/1ms narrow pulse, 32dB gain>100V/us

Input impedance：Normal working conditions, 1KHz, balanced input of 20 kohm

Minimum load impedance：Stereo sound>1.6 ohm Bridge>3.2 ohm Parallel connection>0.8 ohm

Separation degree：1KHz, 0.775V input>80dB

Common mode rejection：Under normal working conditions, 1KHz>80dB

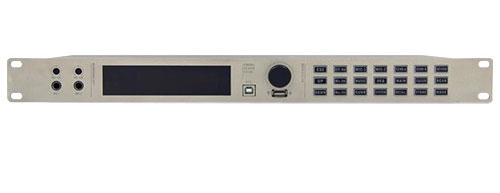

GT7 Product Description

1. 5.1 decoding, two-way microphone adjustment, dynamic and balanced music;

2. With speaker processor function, the main channel, subwoofer, center, and auxiliary are independently adjustable.

3. Full parameter balance (15 music sections, 20 microphone sections);

4. New computer operation interface, support effect saving and sending, simple and intuitive operation;

5. Unique echo and reverberation effect parameter equalization (PEQ/LSH/HSH switching);

6. Auxiliary channel (including subwoofer), music and microphone parameters can be adjusted independently;

7. Each channel has a delay function, which is suitable for various room types and speaker placement;

8. The fifth-generation feedback suppression scheme;

9. Independent research and development of new circuits, more refined processing

10. With recording output, the output parameters can be adjusted independently;

11. Administrator/user mode switching to ensure system security.

12. Wireless WiFi operation is optional;

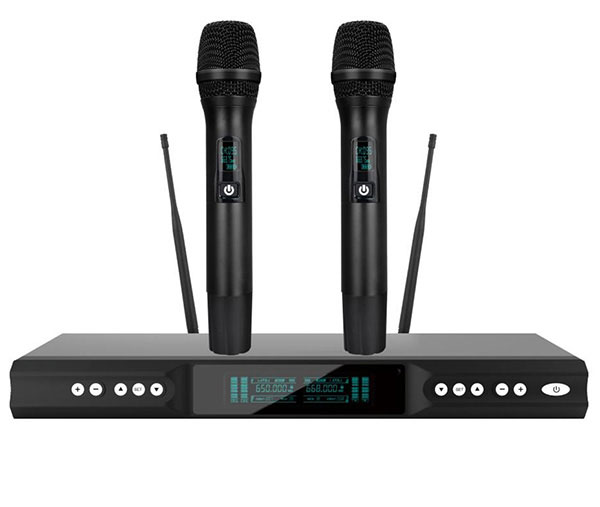

◆ The industry's first automatic hand induction patented technology, the microphone is automatically muted within 3 seconds after leaving the human hand (any direction, any angle can be placed), 5 minutes after the automatic energy saving into standby state, 15 minutes after the automatic shutdown and completely cut off the power supply, is a new concept of intelligent, automatic wireless microphone

◆ Brand new audio circuit architecture, delicate treble, strong middle and low frequency, especially in the details of the sound has perfect expressiveness. The super dynamic tracking ability makes it easy to pick up and play sounds at far/short range

◆ The new concept of digital pilot technology completely solves the phenomenon of cross-frequency in KTV private rooms, and never cross-frequency!

◆ Equipped with acoustic noise suppression function circuit, debugging is simpler

◆ Automatic search for interference-free channel function, more convenient installation

◆ The maximum output volume can be freely limited, and the adaptation range is wider

◆ The host can flexibly set the number of uses

◆ UHF band, phase-locked loop (PLL) frequency synthesis

◆ 100×2 channels, channel spacing 250KHz

◆ Superheterodyne secondary frequency conversion design, with extremely high receiving sensitivity

◆ The RF part adopts multi-stage high-performance dielectric filter, which has excellent anti-interference ability

◆ The first intermediate frequency adopts an acoustic surface filter, and the second intermediate frequency adopts a three-stage ceramic filter, which improves the anti-interference ability

◆ Specially designed mute circuit to completely eliminate the impact noise of microphone opening and closing

◆ The microphone uses easy-to-buy No. 5 batteries, and the reuse time is 6-10 hours

◆ The microphone adopts a unique boost design, and the battery power drop does not affect the overall mold of the hand

◆ The ideal environment operation radius is up to 80 meters, which is suitable for various requirements and occasions

◆ The default configuration is a microphone tube with LCD screen blue backlight and aluminum alloy

◆ With adjustable transmit power and adjustable noise threshold, the rear panel of the receiver is equipped with an external noise control knob, which can flexibly set the effective operating radius between 10 meters and 80 meters according to the needs

◆ With infrared automatic linking function, the microphone can be quickly synchronized to the working channel of the receiver

◆ KTV engineering special model, two microphones, one host. It is easy to configure more than 100 KTV private rooms, with unique product structure design and fast and simple maintenance.
