ES-12 Product Description
ES series adopts the world's high-end speaker unit and lightweight imported birch board, through computer design, accurate frequency division and broadening frequency response characteristics and good control coverage performance. At the same time, the rotatable compression horn allows it to be mounted vertically or balanced, and the smooth frequency response and precise crossover ensure that the listener has the best possible sound quality. Pure language sound is more ideal. High-end bars and slow-shake bars need to balance smooth and wide vocal ranges, and the over-the-top and muddy sound quality characteristics are not listenable. In particular, the sound system of slow shake bars and bars must provide smooth and powerful bass in order to reproduce these music, and the ES series has been designed by computer to focus the mid and high tweeters in the area where impact and high power are needed to extend the best vocal performance.
ES-12 parameters
Application Places Multi-function Hall, Banquet Hall, Conference Room, Concert Hall, Theater, KTV, Nightclub.
Model ES-12
WOOFER 1×12(IN)(310MM)
TWEETER 1×1.75(IN)(44.4MM)
System 2way speaker
Withstands power 400W
Peak power 1600W
Sensitivity 98dB1w/1m
Maximum sound pressure 130dB
Impedance 8ohm
Frequency response 45Hz-20KHz
Protection circuit: Highly intelligent electronic protection system
Color: Black
Surface treatment: Water-based polyurethane spot paint

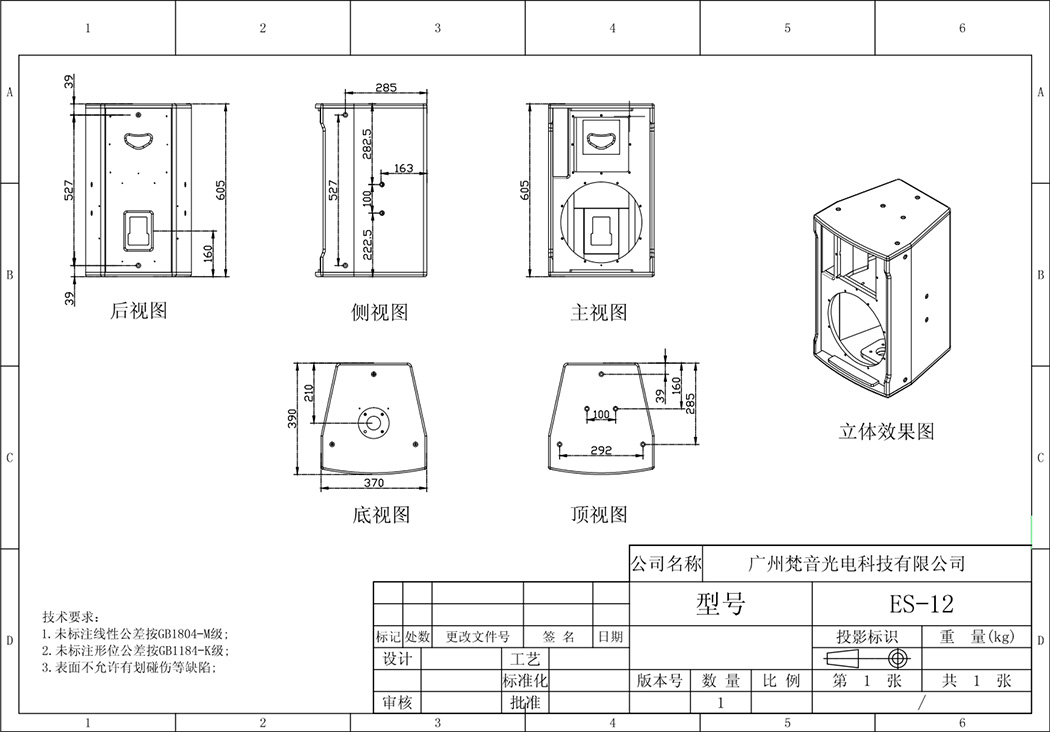

DIMENSIONS: WIDTH: 350× HEIGHT600× DEPTH: 382MM
The net weight of the product is 21.60KG

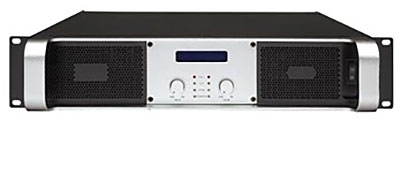

LD-600 Product Description:
LD series power amplifiers adopt stable and reliable circuit design; The op amp of the FET input is selected as the front, the common base circuit is used as the inverted phase, and the common collector circuit is used as the output. Stable performance, convenient input and output interface, complete functions. The perfect protection circuit has: over-current protection, output DC voltage protection and self-locking (which can avoid the harm caused to the speaker by repeatedly opening and closing the relay in the critical state of protection), temperature protection, start-up delay and temperature control stepless speed regulation fan air cooling and heat dissipation.
Technical Indicators
Model: LD-600
8Ω power: 2*600W
4Ω power: 2*850W
8Ω Bridge Power: 2*1700W
Total harmonic normal workpiece 1KHz <0.025%
Intermodulation Distortion: Normal operating conditions, 60Hz/7kHz—4/1 <0.075%
Frequency Response: Normal operating conditions, 20Hz-20kHz < +/- 0.25dB
Power Bandwidth: Normal operating conditions, -3dB 10Hz-50kHz
Phase Response: Normal operating conditions, 20Hz-20kHz < +/- 8 degrees Signal-to-noise ratio: 1KHz, 0.775V input, A-weighted, >110dB
Damping factor: Normal operating conditions, 63Hz >1500
Slew Rate: 1us/1ms narrow pulse, 32dB gain >100V/us
Input Impedance: Normal operating conditions, 1KHz, balanced input 20 kohm
Minimum load impedance: Stereo >1.6 ohm
Bridging >3.2 ohm
Parallel >0.8 ohm
Separation: 1KHz, 0.775V input >80dB
Common Mode Rejection: 1KHz >80dB under normal operating conditions
GT7 Product Description
1. 5.1 decoding, two-way microphone adjustment, dynamic and balanced music;
2. With speaker processor function, the main channel, subwoofer, center, and auxiliary are independently adjustable.
3. Full parameter balance (15 music sections, 20 microphone sections);
4. New computer operation interface, support effect saving and sending, simple and intuitive operation;
5. Unique echo and reverberation effect parameter equalization (PEQ/LSH/HSH switching);
6. Auxiliary channel (including subwoofer), music and microphone parameters can be adjusted independently;
7. Each channel has a delay function, which is suitable for various room types and speaker placement;
8. The fifth-generation feedback suppression scheme;
9. Independent research and development of new circuits, wide frequency response, high-speed CPU, more refined processing;
10. With recording output, the output parameters can be adjusted independently;
11. Administrator/user mode switching to ensure system security.
12. Wireless WiFi operation is optional;
VK-9000 Product Description:
◆ The industry's first automatic hand induction patented technology, the microphone is automatically muted within 3 seconds after leaving the human hand (any direction, any angle can be placed), 5 minutes after the automatic energy saving into standby state, 15 minutes after the automatic shutdown and completely cut off the power supply, is a new concept of intelligent, automatic wireless microphone
◆ Brand new audio circuit architecture, delicate treble, strong middle and low frequency, especially in the details of the sound has perfect expressiveness. The super dynamic tracking ability makes it easy to pick up and play sounds at far/short range
◆ The new concept of digital pilot technology completely solves the phenomenon of cross-frequency in KTV private rooms, and never cross-frequency!
◆ Equipped with acoustic noise suppression function circuit, debugging is simpler
◆ Automatic search for interference-free channel function, more convenient installation
◆ The maximum output volume can be freely limited, and the adaptation range is wider
◆ The host can flexibly set the number of uses
◆ UHF band, phase-locked loop (PLL) frequency synthesis
◆ 100×2 channels, channel spacing 250KHz
◆ Superheterodyne secondary frequency conversion design, with extremely high receiving sensitivity
◆ The RF part adopts multi-stage high-performance dielectric filter, which has excellent anti-interference ability
◆ The first intermediate frequency adopts an acoustic surface filter, and the second intermediate frequency adopts a three-stage ceramic filter, which improves the anti-interference ability
◆ Specially designed mute circuit to completely eliminate the impact noise of microphone opening and closing
◆ The microphone uses easy-to-buy No. 5 batteries, and the reuse time is 6-10 hours
◆ The microphone adopts a unique boost design, and the battery power drop does not affect the overall performance of the microphone
◆ The ideal environment operation radius is up to 80 meters, which is suitable for various requirements and occasions
◆ The default configuration is a microphone tube with LCD screen blue backlight and aluminum alloy
◆ With adjustable transmit power and adjustable noise threshold, the rear panel of the receiver is equipped with an external noise control knob, which can flexibly set the effective operating radius between 10 meters and 80 meters according to the needs
◆ With infrared automatic linking function, the microphone can be quickly synchronized to the working channel of the receiver
◆ KTV engineering special model, two microphones, one host. It is easy to configure more than 100 KTV private rooms, with unique product structure design and fast and simple maintenance.
Technical parameters
Frequency range: 640-690MHz,
Number of adjustable channels: 100×2
Oscillation mode: phase-locked loop frequency synthesis (PLL),
Frequency stability: ±10ppm,
Reception mode: superheterodyne secondary frequency conversion, receiving
Sensitivity: -95~-67dBm,
Audio frequency response: 40-18000Hz,
Harmonic Distortion: ≤0.5%,
Signal-to-noise ratio: ≥110dB,
Audio output: balanced output and mixed output,
Transmit power: 3-30mW,
Modulation: Frequency Modulation (FM)
Battery specifications: 2 No. 5 batteries,
Power supply: 100-240V 50-60Hz 12VDC (switching power adapter) or 220VAC/50-60HZ 12VDC (linear power supply),
Power consumption: ≤10W

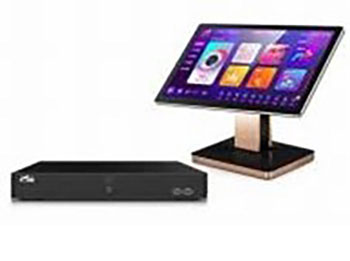

NB60 Product Description:
HDD: 1 HDMI & #65533; 1 VGA：1
C＆#118bs: 2 COAXIAL COAXIAL: 2
OPTICAL Optical: 1 Recording Input L/R: 1
Group Recording Level Knob: 1
Audio AV output L/R: 1 group
Gigabit LAN card: 1 Serial port: 2 USB: 3
Power supply: 12V/3A IR to interface: 1

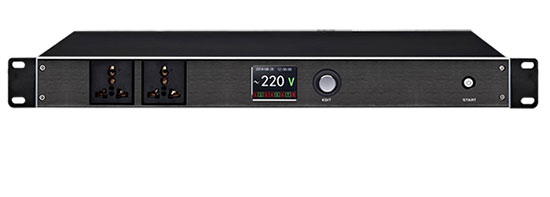

BF-228 Product Description:
Maximum input current: 50A
Maximum output current of a single channel: 16A
Working voltage: 220V/50-60Hz
Power per channel: up to 3000W
Up to 3000WAC input voltage = AC output voltage (please specify before placing an order, optional voltage: 110V input = 110V output, 220V input = 220V output)
Output power socket: universal socket, in line with European and American standards. 8 controlled multi-sockets on the rear panel
Socket material: Each socket is made of phosphor copper, which is installed only after passing the inspection
The interval between each channel: 1 second, with 1 switch indicator for each channel
Relay: Ningbo Songle brand (original genuine)
Circuit board circuit: 60% high-purity tin, high-end shunt technology, strengthened and thickened
Transformer: A&C original genuine
Power cord: 3*6 square cable, cable configuration length of 1.5 meters
Voltage Display Meter: Digital display voltmeter
Chassis height: 1.5U (according to cabinet standards)
Switch: Circular switch
Filter: Capacitive filtering
F-16U product description
Panel: E1 grade environmental protection furniture multi-layer solid wood paint-free multi-layer plywood, a variety of colors and decorations � ,
Size: 12U, 568*698*554mm(W*H*D)
25 cm upper and lower board + 18 cm side plate/rear plate/laminate, facing layer flame retardant, moisture-proof and mildew-proof.
Shelf: The shelf can be selected up and down in three stages, and the top plate has a threading hole to facilitate the stringing of the song orderer.
Lock bar column: private mold aluminum alloy non-fixed snap lock column, height can be adjusted at will.
The locking screws are made of eternal rust and nickel-plated professional buckles.
Cabinet door: 20*20 thick aluminum alloy door frame + 5MM thick tempered glass, short arm damping hinge, with door lock/pin.
Flush the net with a large heat dissipation net, which can be equipped with an external cooling fan
Packing: Carton packing.
Installation: On-site combined installation, concise and easy to understand.
Customized optional glass color: tea glass/gray glass/Changhong glass.
Cabinet feet: universal mute rubber straight wheel with lock in front of the rear, easy to move, and the four-wheel load is up to 240 kg
