Functional features:
The ES series adopts world-class speaker units and lightweight birch wood panels. Through computer design, it has precise frequency division and broadening frequency response characteristics, as well as good control coverage performance. The rotatable compression horn allows for both vertical and balanced installation, with smooth frequency response and precise division to ensure excellent sound quality for listeners. Simply using language sounds is more ideal. High end bars and slow bars require a balance between smooth and wide vocal ranges. Overly exaggerated and turbid sound quality characteristics are not durable. Especially for slow bars and bars, the sound system must provide smooth and strong bass to replay these music. The ES series uses computer design to set the mid to high frequencies in areas that require impact and high-power treble, expanding the best vocal performance.
Application scenarios: KTV, theater, banquet hall, conference room, music hall, nightclub, multipurpose hall, etc.
Technical parameters:
Unit configuration: LF: 1 × 10 "(250MM); HF: 1 × 1.75" (44.4MM)
Frequency response: 50Hz-20KHz
System: 2way speaker
Impedance: 8ohm
Sensitivity 1w/1m: 96dB
Rated/Peak Power (RMS): 300W/1200W
Output sound pressure level (continuous/peak): 121dB/127dB
Coverage angle: 90 ° x 70 ° (H x V)
Protection circuit: High intelligence electronic protection system
Input interface: 1 × Speakon NL4MP
Color: Black
Box material: Birch veneer multi-layer plywood
Surface treatment: water-based polyurethane dot paint

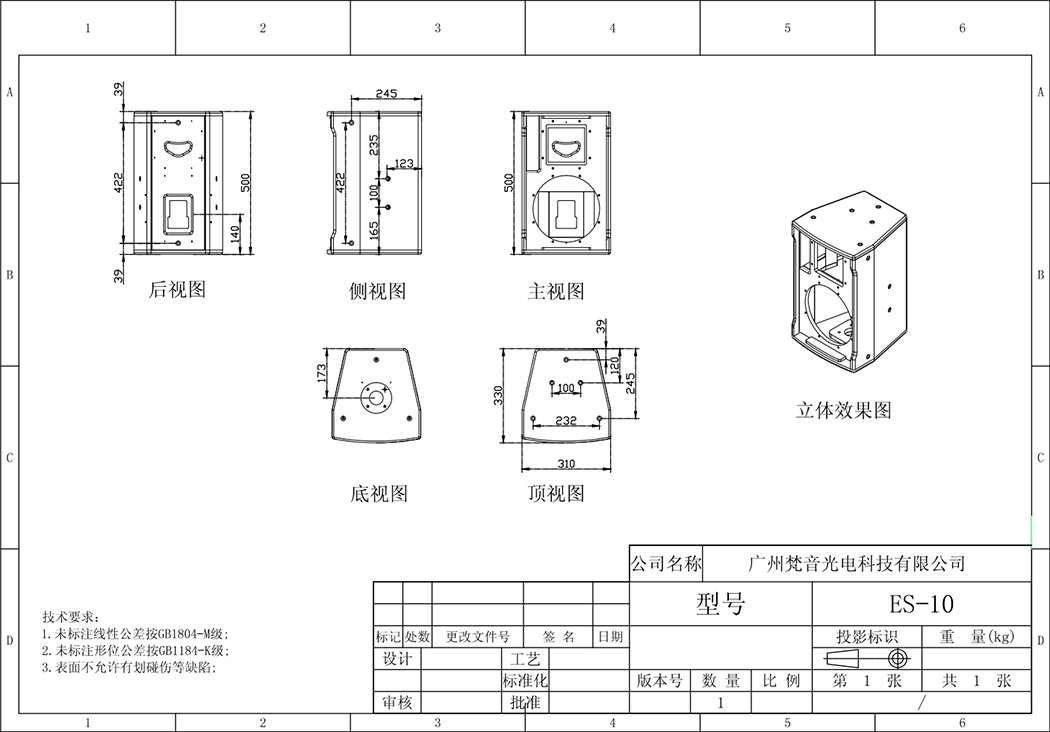

Product dimensions: Width 310 x Height 500 x Depth 330MM
Net weight of product: 16.60KG
