Functional features:
ES-12S is a high-performance stage monitoring speaker with a built-in two-way two unit structure, providing a frequency range of 60Hz-18kHz. It consists of a 12 inch low-frequency and a 1.75-inch high-frequency compression unit, using customized unit and waveguide technology. Its constant directional diffusion angle of 90 ° x 60 ° can accurately cover the stage area. The monitoring angle is matched with two angles of 55 °/20 °, and the bottom has rubber feet to provide anti slip effect.
Application locations: distributed systems, cruise ships, concert halls, theaters.
Technical parameters:
Unit configuration: LF: 1 × 12 "(310MM); HF: 1 × 1.75" (44.4MM)
Frequency response: 60Hz-18KHz
System: 2way speaker
Impedance: 8ohm
Sensitivity 1w/1m: 98dB
Rated/Peak Power (RMS): 400W/1600W
Output sound pressure level (continuous/peak): 123dB/129dB
Coverage angle: 90 ° x 60 ° (H x V)
Protection circuit: High intelligence electronic protection system
Input interface: 2 × Speakon NL4MP
Color: Black
Box material: Birch veneer multi-layer plywood
Surface treatment: water-based polyurethane dot paint

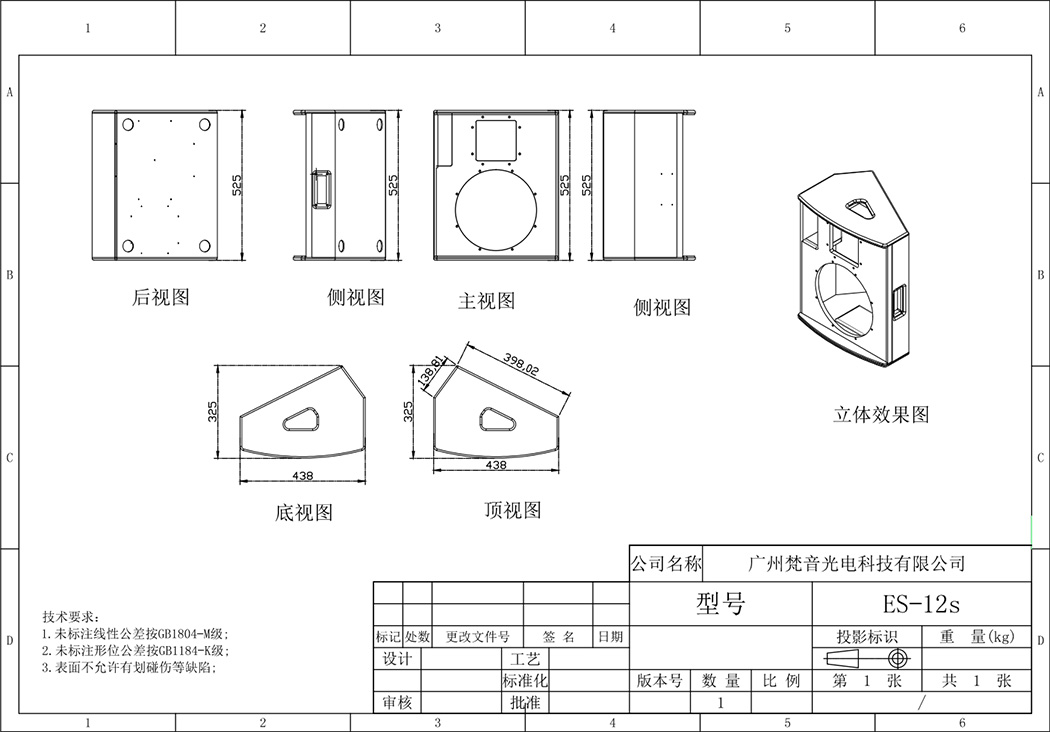

Product dimensions: Width 525 x Height 438 x Depth 325MM
Net weight of product: 18.70KG
