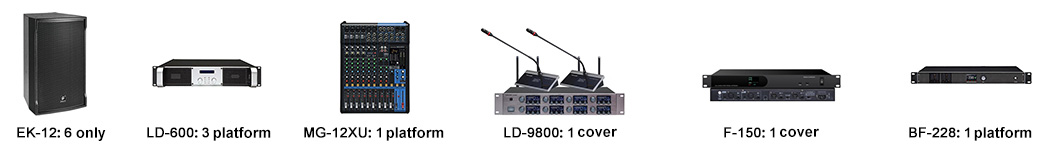

Other Models: 80-100 sq. m    120-140 sq. m    160-180 sq. m    200-220 sq. m

EK-12 product drawings

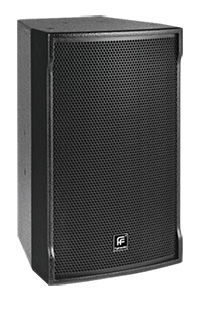

EK-12 Product Description:

The EK-12 is a high-power, rugged two-way system with a powerful 12" (310mm) LF driver and a 1.75" (44.4mm) HF compression driver mounted on a continuously directional 90-degree × 60-degree horn. The high-frequency horn can be rotated so that the multi-angle cabinet can be placed both horizontally and vertically. Streamlining the system, it's ideal for applications that require efficient and reliable full-range loudspeakers. It is also suitable for fixed installations and quick movable installations.

EK-12 parameters

Application places：studios, multi-function halls, sports venues, distributed systems, concert halls, etc.

Model：EK-12

Woofer：1×12(in)(310MM)

TWEETER：1×1.75(IN)(44.4MM)

System：2way speaker

Withstand power：400W

Peak power：1600W

Sensitivity：98dB1w/1m

Maximum sound pressure：128dB

Impedance：8ohm

Frequency response：52Hz-20KHz

Protection circuit：highly intelligent electronic protection system

Color：Black

Surface treatment：polyurethane spot paint

Product size：width 350× height 600× depth 382MM

Product net weight：20.70KG

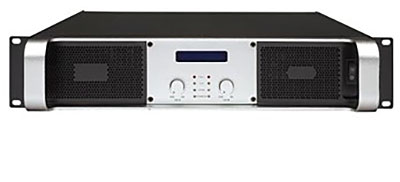

LD-600 Product Description:

LD series power amplifiers adopt stable and reliable circuit design; The op amp of the FET input is selected as the front, the common base circuit is used as the inverted phase, and the common collector circuit is used as the output. Stable performance, convenient input and output interface, complete functions. The perfect protection circuit has: over-current protection, output DC voltage protection and self-locking (which can avoid the harm caused to the speaker by repeatedly opening and closing the relay in the critical state of protection), temperature protection, start-up delay and temperature control stepless speed regulation fan air cooling and heat dissipation.

Technical Indicators

Model：LD-600

8Ω power：2*600W

4Ω power：2*850W

8Ω bridge power：2*1700W

Total Harmonic Distortion：Normal Operating Conditions, 1KHz <0.025%

Intermodulation Distortion：Normal operating conditions, 60Hz/7kHz—4/1 <0.075%

Frequency Response: Normal operating conditions, 20Hz-20kHz < +/- 0.25dB

Power bandwidth：-3dB 10Hz-50kHz under normal operating conditions

Phase response：under normal working conditions, 20Hz-20kHz < +/- 8 degrees Signal-to-noise ratio: 1KHz, 0.775V input, A-weighted, >110dB

Damping coefficient：Normal operating conditions, 63Hz >1500

Slew rate：1us/1ms narrow pulse, 32dB gain >100V/us

Input impedance：Normal operating conditions, 1KHz, balanced input 20 kohm

Minimum load impedance：Stereo >1.6 ohm

Bridging >3.2 ohm

Parallel >0.8 ohm

Separation：1KHz, 0.775V input >80dB

Common Mode Rejection：1KHz >80dB under normal operating conditions

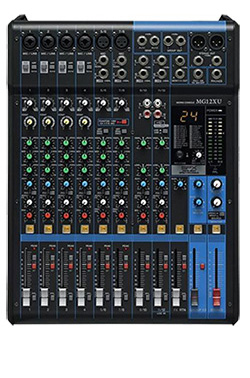

Product description of MG-12XU

12-channel mixer

Up to 6 microphones / 12 line inputs (4 mono + 4 stereo)

2 group bus + 1 stereo bus

"D-PRE" mic preamp with inverted transistor circuitry.

Single-knob compressor

Advanced Effects: SPX, with 24 sets of preset effects

24-bit/192kHz 2 in/2 out USB audio function

PAD switch on the mono input channel

+48V phantom powered

XLR balanced output

Worldwide internal global power supply

Metal body

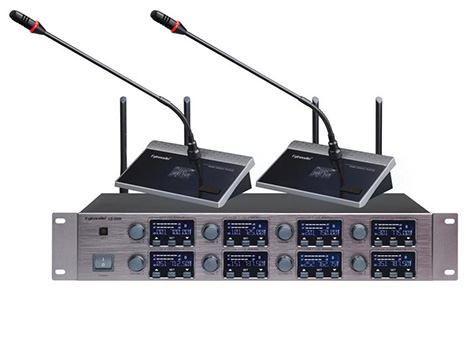

LD-9800 Product Description:

1. Adopt UHF500-900MHz frequency band and PLL phase-locked loop design

2. The host has 400 channels, and the reasonable design is convenient for users to use multiple sets at the same time or stack machines;

3. Each channel is equipped with a unique ID number to enhance the anti-interference function and easily avoid all kinds of interference;

4. Each channel of the host has an LCD screen to display the working channel, working frequency and received signal;

5. Infrared frequency, transmitter can be interchanged, simple operation, advanced function;

6. The main machine is equipped with a lock key function to better manage the system.

7. The all-metal panel with brown PMMA perfectly covers the built-in display screen of the host, and the content can only be displayed when the power is turned on.

8. The host is equipped with 4 rubber receiving antennas to enhance the received signal;

9. It has independent output (XLR) and hybrid (φ6.3mm) output, which is convenient for connecting audio processing and power amplifier equipment;

10. Balanced and unbalanced two options output end mound  depending on Σ Huang  Napu Ga with fir spp＆#65533;

11. Distance: 80-100 meters in open environment, 50-80 meters in complex environment.

12. It is suitable for all kinds of meetings and speech occasions.

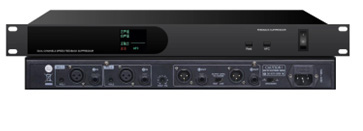

F-150 Feedback Suppressor Product Description

Features:

1. Fully automatic detection of on-site acoustic machinery δ SP system filters the sound, automatic mixing of bass compensation, intelligent high-speed feedback processing, and eliminates the return transmission to the greatest extent in full digitalization.

2. Full-color Chinese display, 2-inch OLED display content is more comprehensive and intuitive.

3. Automatically adapt to the acoustic environment, no need to debug, quickly correct the function, ensure the sound quality, and reduce the delay.

4. One-key setting, making engineering debugging more convenient and fast.

5. When more than 10 microphones are used at the same time, the microphone pickup distance will be effectively increased by 30~150cm.

6. Stereo channel input and output, more compatible with other engineering equipment.

7. Under normal use, the machine does not need to be debugged, and automatically adapts to the acoustic environment (the automatic adaptation process takes about 10 seconds), and the whole system will get an additional gain of 6~15dB.

8. If the sound quality is abnormal in the use environment (after many howls during system debugging), please reduce the volume appropriately, and then press the quick correction button of the machine, at this time, a signal sound of 1 second to 6dB will be randomly generated, and the sound quality will return to normal.

Applicable places: large, medium and small conference rooms, lecture halls, multi-function halls, courts, banquet halls, education systems, etc.

Technical parameters

Processing：Dual DSP chip processing

Professional sampling rate：48KHz

Frequency response：125Hz~15KHz (sound mode), 20Hz~15KHz (music mode)

Distortion：<0.1%@1KHz Signal-to-noise ratio: >90dB

Signal Delay：7m/s (Music Mode) 11m/s (Sound Mode)

Input impedance：20KΩ

Rated voltage：220V±10%50Hz

Temperature range：-10~55°C

Weight：3.9Kg

Size：480*220*44mm

It automatically adapts to the acoustic environment without debugging, and the maximum size of 6 dB-15 dB can be used well in different environments

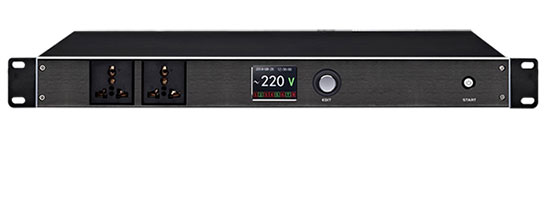

BF-228 Product Description:

Maximum input current: 50A

Maximum output current of a single channel: 16A

Working voltage: 220V/50-60Hz

Power per channel: up to 3000W

Up to 3000WAC input voltage = AC output voltage (please specify before placing an order, optional voltage: 110V input = 110V output, 220V input = 220V output)

Output power socket: universal socket, in line with European and American standards. 8 controlled multi-sockets on the rear panel

Socket material: Each socket is made of phosphor copper, which is installed only after passing the inspection

The interval between each channel: 1 second, with 1 switch indicator for each channel

Relay: Ningbo Songle brand (original genuine)

Circuit board circuit: 60% high-purity flow technology is used, and it is strengthened and executed

Transformer: A&C original genuine

Power cord: 3*6 square cable, cable configuration length of 1.5 meters

Voltage Display Meter: Digital display voltmeter

Chassis height: 1.5U (according to cabinet standards)

Switch: Circular switch

Online support: None

Filter: Capacitive filtering
