Other models：   CS-80     CS-10     CS-12

Functional features:

The CS-12 ultra-thin hidden speaker system adopts world-class speaker units and lightweight birch multi-layer plywood. Through computer design, it has precise frequency division and widening frequency response characteristics, as well as good control coverage performance. The rotatable compression horn allows for both vertical and balanced installation, with smooth frequency response and precise division to ensure excellent sound quality for listeners. Simply using language sounds is more ideal. It has the characteristics of high power, high sensitivity, large dynamic range, and low distortion, and can truly reproduce movie sound effects with almost perfect sound characteristics.

Application scenarios: Music halls, theaters, KTVs, karaoke foot baths, and surround sound systems for cinemas.

Technical parameters:

Unit configuration: LF: 1 × 12 "(310MM); HF: 1 × 1.75" (44.4MM)

Frequency response: 48Hz-20KHz

System: 2way speaker

Impedance: 8ohm

Sensitivity 1w/1m: 98dB

Rated/Peak Power (RMS): 450W/1800W

Output sound pressure level (continuous/peak): 123dB/129dB

Coverage angle: 100 ° x 50 ° (H x V)

Protection circuit: High intelligence electronic protection system

Input interface: 1 × Speakon NL4MP

Color: Black

Box material: Birch veneer multi-layer plywood

Surface treatment: water-based polyurethane dot paint

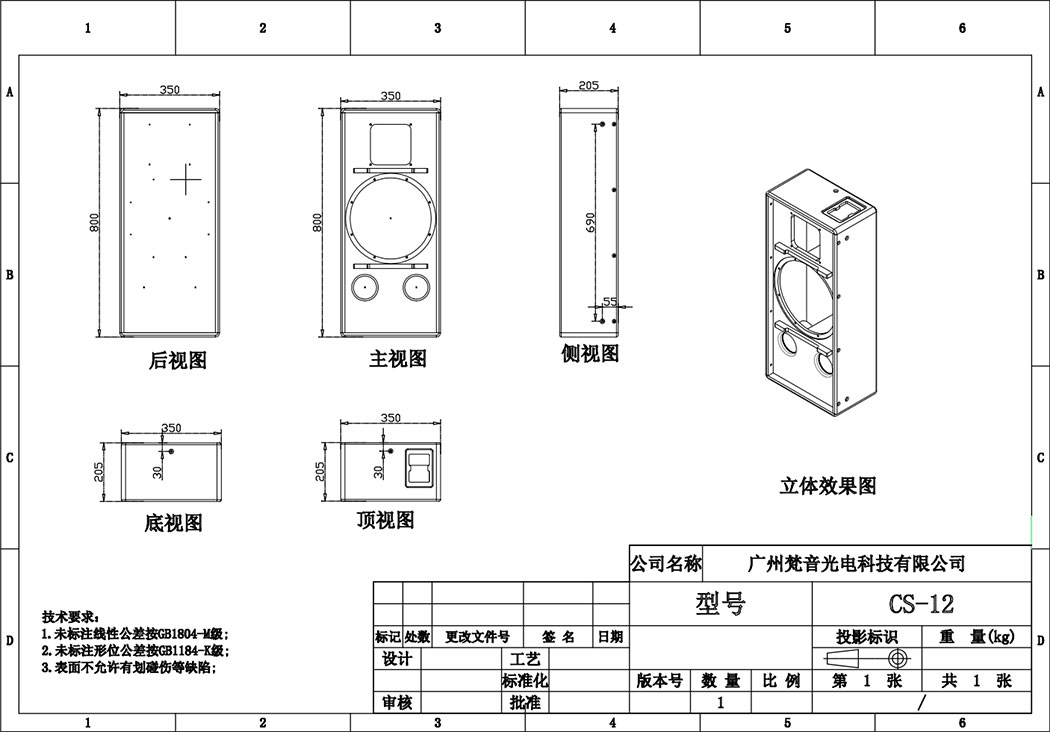

Product dimensions: Width 350 x Height 800 x Depth 205MM

Net weight of product: 20.70KG
